API Spec 5DP Drill Pipe Specifications, Sizes & Standard

Date:2026-01-04View:4558Tags:API 5DP drill pipe, API drill pipe, drill pipe size

1. What Is API Spec 5DP?


API Spec 5DP is a standard for steel drill pipe used in the oil and gas industry. It specifies requirements for drill pipe dimensions, materials, mechanical properties, and manufacturing.

Drill pipe connects the surface drilling equipment to the drill bit. It transmits torque and carries drilling fluid to the bit during drilling operations.


API 5DP Drill Pipe Engineering Reference Manual (PDF)

Download the API Spec 5DP Drill Pipe Engineering Reference Manual for drill pipe dimensions, steel grades, mechanical properties, tool joint connections, and operating capacities.

Descargar PDF



2. API 5DP Steel Grades


API Spec 5DP covers Grade E drill pipe, high-strength grades X, G, S, and V, and sour-service grades SS75, SS95, and SS105. These grades differ in yield strength and mechanical properties, which influence drill pipe selection for specific drilling conditions.


Grade Minimum Yield Strength (psi) Maximum Yield Strength (psi) Minimum Tensile Strength (psi) Maximum Tensile Strength (psi)
E 75,000 105,000 100,000 —
X 95,000 125,000 105,000 —
G 105,000 135,000 115,000 —
S 135,000 165,000 145,000 —
V 150,000 170,000 160,000 190,000
SS75 75,000 95,000 100,000 115,000
SS95 95,000 110,000 105,000 130,000
SS105 105,000 120,000 115,000 140,000


3. API 5DP Chemical Composition Requirements


Carbon, manganese, chromium and molybdenum influence the strength and hardenability of drill pipe steel. Phosphorus and sulfur are restricted because excessive levels can reduce toughness and hot ductility.


Element Why it is controlled
C Influences strength, hardenability and weldability
Mn Contributes to strength and hardenability
P Restricted because excessive levels can reduce toughness
S Restricted because excessive levels can reduce toughness and hot ductility
Si Used for deoxidation and can contribute to strength
Cr, Ni, Mo Alloying elements used to adjust hardenability and mechanical properties


Note: The values shown are the specified chemical composition limits in API Spec 5DP. Actual composition may vary slightly depending on the manufacturing process and steel grade.


4. API 5DP Dimensions


API Spec 5DP specifies the standard dimensions for drill pipe, including outside diameter (OD), wall thickness, weight, upset type, and connection type. Standard sizes range from 2 3/8 in. to 6 5/8 in.

The specification also defines standard drill pipe lengths (R1, R2, and R3) and compatible rotary shoulder connections, including NC, IF, FH, and REG.

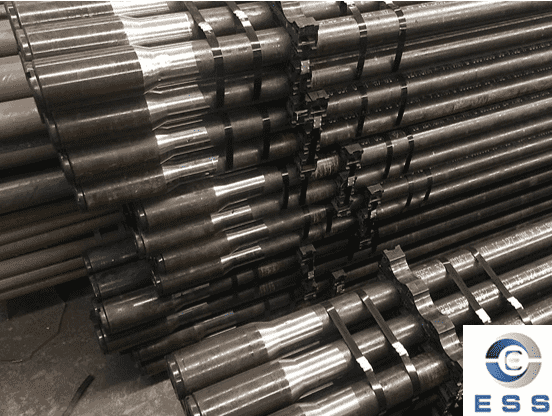

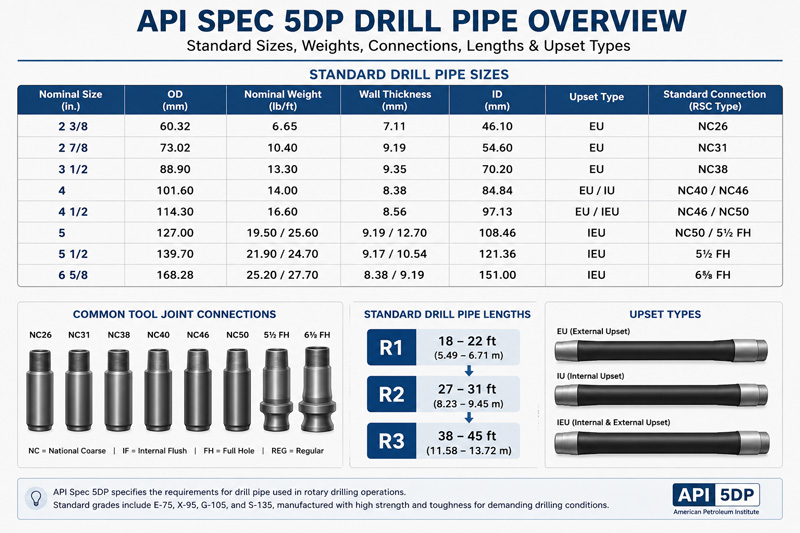

The following table summarizes the standard API 5DP drill pipe dimensions.


Nominal Size

Weight (lb/ft)

OD (mm)

Wall Thickness

(mm)

Upset Type

Standard Connection

2 3/8 6.65 60.32 7.11 EU NC26
2 7/8 10.40 73.02 9.19 EU NC31
3 1/2 13.30 88.90 9.35 EU NC38
4 14.00 101.60 8.38 EU / IU NC40 / NC46
4 1/2 16.60 114.30 8.56 EU / IEU NC46 / NC50
5 19.50 / 25.60 127.00 9.19 / 12.70 IEU NC50 / 5½ FH
5 1/2 21.90 / 24.70 139.70 9.17 / 10.54 IEU 5½ FH
6 5/8 25.20 / 27.70 168.28 8.38 / 9.19 IEU 6⅝ FH


Complete dimensional requirements are available in the official API specification and are summarized in the Drill Pipe Size Chart.


5. API 5D vs API Spec 5DP


API 5D was the earlier API standard for drill pipe and primarily specified the requirements for the drill pipe body, including dimensions, materials, and basic mechanical properties.


API Specification 5DP replaced API 5D by expanding the scope to cover the complete finished drill pipe. In addition to the pipe body, it specifies requirements for tool joints, weld zones, manufacturing, inspection, testing, marking, and documentation. Today, API Spec 5DP is the current API standard for steel drill pipe used in oil and gas drilling.


The table below summarizes the main differences between the two specifications.

Feature API 5D API Spec 5DP
Scope Drill pipe body Complete finished drill pipe
Coverage Materials and basic dimensions Dimensions, steel grades, manufacturing, inspection, testing, marking, and documentation
Tool Joints Limited requirements Included
Weld Zone Not covered Covered
Inspection Requirements Basic Comprehensive
Current Status Superseded Current API standard


Reference: This comparison is based on the technical requirements defined in API Specification 5DP – Specification for Drill Pipe (latest applicable edition) and the superseded API Specification 5D, published by the American Petroleum Institute (API).


6. Frequently Asked Questions


Q1. What steel grades are included in API Spec 5DP?

API Spec 5DP includes four steel grades: E75, X95, G105, and S135. As the grade increases, the drill pipe offers higher strength and is suitable for deeper wells and more demanding drilling conditions.


Q2. What drill pipe sizes does API Spec 5DP cover?

API Spec 5DP covers standard drill pipe sizes from 2 3/8 in. to 6 5/8 in. It also defines standard wall thicknesses, weights, upset types, thread connections, and length ranges (R1, R2, and R3).


Q3. Did API Spec 5DP replace API 5D?

Yes. API Spec 5DP replaced API 5D and is the current API standard for steel drill pipe. It covers the complete finished drill pipe rather than only the pipe body.


Q4. Is API Spec 5DP the current drill pipe standard?

Yes. API Spec 5DP is the current API specification for steel drill pipe used in oil and gas drilling and is widely adopted throughout the industry.


Q5. Does API Spec 5DP cover tool joints?

Yes. In addition to the pipe body, API Spec 5DP includes requirements for tool joints, weld zones, inspection, and testing to ensure the performance of the finished drill pipe.


Q6. Where can I download the API Spec 5DP PDF?

API Specification 5DP is a copyrighted publication of the American Petroleum Institute (API). Official PDF copies are available through authorized API distributors rather than free public downloads.


Q7. Does API Spec 5DP apply to seamless drill pipe?

Yes. API Spec 5DP applies to seamless steel drill pipe used in oil and gas drilling and defines the technical requirements for dimensions, steel grades, manufacturing, inspection, and testing.
