Butterfly Valve

Butterfly Valve

Butterfly valves service high performance and fire protection systems and are available in a broad size range with wafer lug, grooved, or press end connections. Butterfly valves provide bi-directional dead-end service in commercial and industrial service and can provide many maintenance-free cycles and still accommodate “bubble tight” shut off.

Resilient Seat Butterfly Valve
Resilient Seat Butterfly Valve
Design standard:API 609/EN593
Connection Flange:ISO 7005-2 PN10/16, EN 1092-2 PN10/16,  ASME B16.5 CLASS 150, JIS 10K (DN40~DN300)
Top Flange:ISO 5211
Face To Face:API 609A /EN558 20 series
Test Standard:API 598 /EN12266-1

Working Pressure:PN10/16

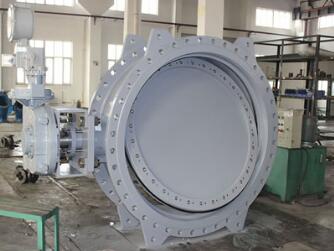

Double Flange Double Eccentric Butterfly Valve
Double Flange Double Eccentric Butterfly Valve
Design standard Conform To:EN 593
Connection flange conform To:EN1092-2, ISO7005-2
Top flange conform to:ISO 5211
Face to face conform to:EN 558 Series 14
Test standard conform to:EN12266-1
Nominal working pressure:PN10/PN16/PN25/PN40


AWWA C504 Butterfly Valve
AWWA C504 Butterfly Valve

Design Standards:AWWA C504/AWWA C516
Connection Flange:ASME B16.1 Class 125  AWWA C111/A21.11
Top Flange:MSS SP-101/ISO 5211
Face to Face:AWWA C504/AWWA C516
Test Standard:AWWA C504

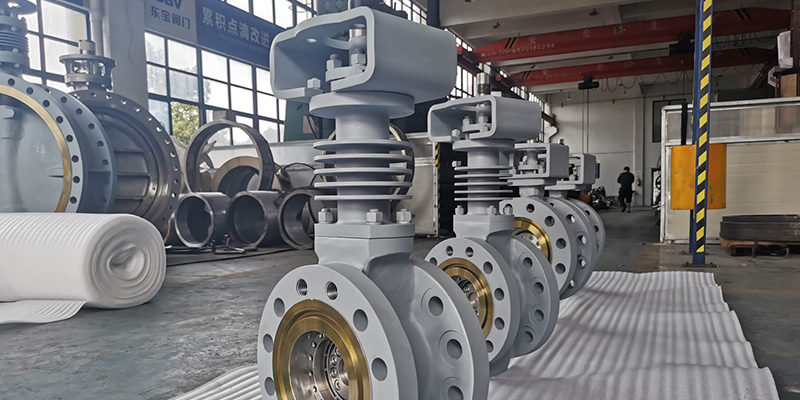

Tripple Offset Meatal Seated Bufferfly Valve
Tripple Offset Meatal Seated Bufferfly Valve

Size Range:3"~128" (80mm~3200mm)
Pressure Class:150lb~1500lb(PN25~PN260)
Temperature Range:-196℃~+650℃(-321℉~+1202℉)
Connection Type:wafer,lug,double flange,butt -welded
Drive Type:Worm gear, Pneumatic, Electric,Hydraulic


High Performance Butterfly Valve
High Performance Butterfly Valve
Pressure:Classl50, Class300
Size:Basic type:  2”-48”(50mm -1200mm)
Fire safety type: 2”- 60”(50mm -1500mm)
Temperature:-196°C ~ +650°C (-321 ℉~+1202℉)
Connection Type:wafer, lug
Drive Type:manual, worm gear, pneumatic, electric
Applicable Medium: corrosive chemical media, water, gas, acid, alkali, steam, pharmaceutical, etc.
