Steel Casing Pipe Size Chart

Date:2026-06-17View:5934Tags:steel casing pipe size, casing pipe, steel casing

Steel casing pipe sizes are typically specified by outside diameter, wall thickness, weight per foot, and internal dimensions. These parameters determine the strength, collapse resistance, and installation requirements of the casing string.

The size chart below summarizes common steel casing pipe dimensions used in drilling and well construction projects. In addition to outside diameter and nominal weight, engineers often reference wall thickness, inside diameter, and drift diameter when selecting casing and tubing for a specific application.

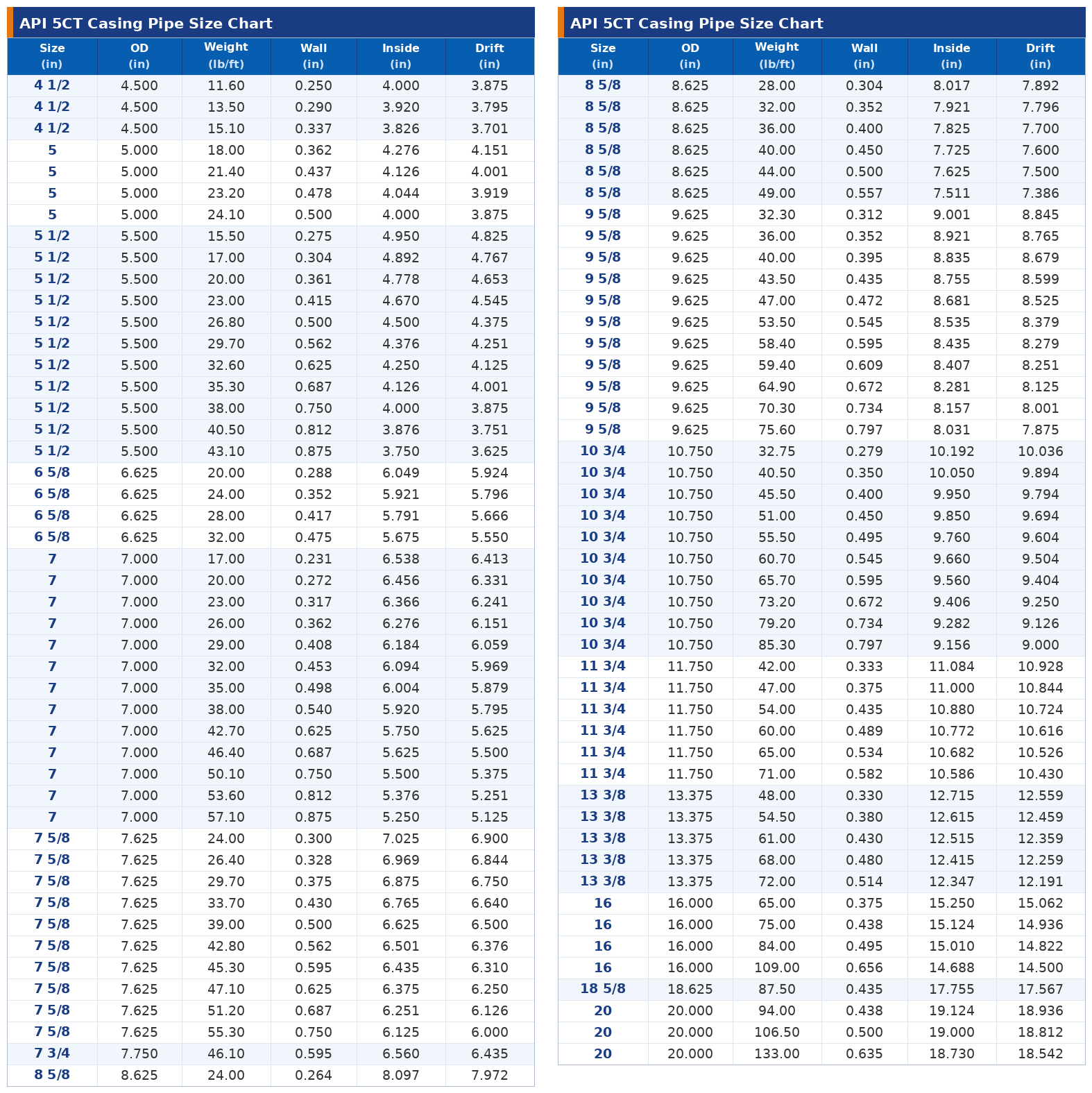

1. Steel Casing Pipe Size Chart


The chart covers common API casing sizes together with their corresponding wall thickness, inside diameter, drift diameter, and nominal weight values.


Casing Size (in)

Weight (lb/ft)

OD (in)

Wall Thickness (in)

ID (in)

Drift Diameter (in)

Plain End Mass (lb/ft)

STC (lb)

LTC (lb)

BTC-RC (lb

BTC-SCC (lb)

4 1/2

9.5

4.5

0.205

4.09

3.965

9.41

4.2







4 1/2

10.5

4.5

0.224

4.052

3.927

10.24

3.8



5

2.56

4 1/2

11.6

4.5

0.25

4

3.875

11.36

3.4

3.8

4.6

2.16

4 1/2

13.5

4.5

0.29

3.92

3.795

13.05



3.2

4

1.56

4 1/2

15.1

4.5

0.337

3.826

3.701

15



2.8

3.2

0.76

5

11.5

5

0.22

4.56

4.435

11.24

5.4







5

13

5

0.253

4.494

4.369

12.84

4.8

5.8

6.6

2.42

5

15

5

0.296

4.408

4.283

14.88

4.2

5.2

5.8

1.62

5

18

5

0.362

4.276

4.151

17.95



4.2

4.4

0.22

5

21.4

5

0.437

4.126

4.001

21.32



2.95

2.46

-1.72

5

23.2

5

0.478

4.044

3.919

23.11



2.3

2.05

-2.09

5

24.1

5

0.5

4

3.875

24.05



1.95

1.24

-2.94

5 1/2

14

5.5

0.244

5.015

4.887

13.71

5.4







5 1/2

15.5

5.5

0.275

4.95

4.825

15.36

4.8

5.8

6.4

2.1

5 1/2

17

5.5

0.304

4.892

4.767

16.89

4.4

5.4

5.8

1.5

5 1/2

20

5.5

0.361

4.778

4.653

19.83



4.4

4.6

0.3

5 1/2

23

5.5

0.415

4.67

4.545

22.56



3.2

3.4

0.9

5 1/2

26.8

5.5

0.5

4.5

4.375

26.72









5 1/2

29.7

5.5

0.562

4.376

4.251

29.67









5 1/2

32.6

5.5

0.625

4.25

4.125

32.57









5 1/2

35.3

5.5

0.687

4.126

4.001

35.35









5 1/2

38

5.5

0.75

4

3.875

38.08









5 1/2

40.5

5.5

0.812

3.876

3.751

40.69









5 1/2

43.1

5.5

0.875

3.75

3.625

43.26









6 5/8

20

6.625

0.288

6.049

5.924

19.51

11

13.6

14.4

2.38

6 5/8

24

6.625

0.352

5.921

5.796

23.6

9.6

12

12.6

0.58

6 5/8

28

6.625

0.417

5.791

5.666

27.67



10.2

10.6

-1.42

6 5/8

32

6.625

0.475

5.675

5.55

31.23



8.8

9

-3.02

7

17

7

0.231

6.538

6.413

16.72

10







7

20

7

0.272

6.456

6.331

19.56

9.4







7

23

7

0.317

6.366

6.25

22.65

8

10.4

11

1.6

7

23

7

0.317

6.366

6.241

22.65

8

10.4

11

1.6

7

26

7

0.362

6.276

6.151

25.69

7.2

9.4

9.6

0.2

7

29

7

0.408

6.184

6.059

28.75



8

8.2

1.2

7

32

7

0.453

6.094

6

31.7



6.6

6.8

2.6

7

32

7

0.453

6.094

5.969

31.7



6.6

6.8

2.6

7

35

7

0.498

6.004

5.879

34.61



5.6

5.6

3.8

7

38

7

0.54

5.92

5.795

37.29



4.4

4.2

5.2

7

42.7

7

0.625

5.75

5.625

42.59









7

46.4

7

0.687

5.625

5.5

46.36









7

50.1

7

0.75

5.5

5.375

50.11









7

53.6

7

0.812

5.376

5.251

53.71









7

57.1

7

0.875

5.25

5.125

57.29









7 5/8

24

7.625

0.3

7.025

6.9

23.49

15.8







7 5/8

26.4

7.625

0.328

6.969

6.844

25.59

15.2

19

20.6

6.21

7 5/8

29.7

7.625

0.375

6.875

6.75

29.06



17.4

18.8

4.41

7 5/8

33.7

7.625

0.43

6.765

6.64

33.07



15.8

17

2.61

7 5/8

39

7.625

0.5

6.625

6.5

38.08



13.6

14.6

0.21

7 5/8

42.8

7.625

0.562

6.501

6.376

42.43



12.01

11.39

-3.01

7 5/8

45.3

7.625

0.595

6.435

6.31

44.71



11.04

11.04

-3.36

7 5/8

47.1

7.625

0.625

6.375

6.25

46.77



10.16

9.23

-5.17

7 5/8

51.2

7.625

0.687

6.251

6.126

50.95









7 5/8

55.3

7.625

0.75

6.125

6

55.12









7 3/4

46.1

7.75

0.595

6.56

6.5

45.51









7 3/4

46.1

7.75

0.595

6.56

6.435

45.51









8 5/8

24

8.625

0.264

8.097

7.972

23.6

23.6







8 5/8

28

8.625

0.304

8.017

7.892

27.04

22.2







8 5/8

32

8.625

0.352

7.921

7.875

31.13

20.8

27.6

28.3

6.03

8 5/8

32

8.625

0.352

7.921

7.796

31.13

20.8

27.6

28.2

6.03

8 5/8

36

8.625

0.4

7.825

7.7

35.17

19.4

25.6

26.2

4.03

8 5/8

40

8.625

0.45

7.725

7.625

39.33



23.8

24.2

2.03

8 5/8

40

8.625

0.45

7.725

7.6

39.33



23.8

24.2

2.03

8 5/8

44

8.625

0.5

7.625

7.5

43.43



21.8

22.2

0.03

8 5/8

49

8.625

0.557

7.511

7.286

48.04



19.6

19.8

-2.37

9 5/8

32.3

9.625

0.312

9.001

8.845

31.06

24.4







9 5/8

36

9.625

0.352

8.921

8.876

34.89

23

32

31

6.48

9 5/8

40

9.625

0.395

8.835

8.75

38.97

21.4

30

29

4.48

9 5/8

40

9.625

0.395

8.835

8.679

38.97

21.4

30

29

4.48

9 5/8

43.5

9.625

0.435

8.755

8.599

42.73



28.2

27.2

2.68

9 5/8

47

9.625

0.472

8.681

8.525

46.18



26.6

25.6

1.08

9 5/8

53.5

9.625

0.545

8.535

8.5

52.9



23.4

22.4

-2.12

9 5/8

53.5

9.625

0.545

8.535

8.379

52.9



23.4

22.4

-2.12

9 5/8

58.4

9.625

0.595

8.435

8.375

57.44



21.5

20.13

-4.4

9 5/8

58.4

9.625

0.595

8.435

8.279

57.44



21.5

20.13

-4.4

9 5/8

59.4

9.625

0.609

8.407

8.251

58.7









9 5/8

64.9

9.625

0.672

8.281

8.125

64.32









9 5/8

70.3

9.625

0.734

8.157

8.001

69.76









9 5/8

75.6

9.625

0.797

8.031

7.875

75.21









10 3/4

32.75

10.75

0.279

10.192

10.036

31.23

29







10 3/4

40.5

10.75

0.35

10.05

9.894

38.91

26.4



34.4

7.21

10 3/4

45.5

10.75

0.4

9.95

9.875

44.26

24.4



31.8

4.61

10 3/4

45.5

10.75

0.4

9.95

9.794

44.26

24.4



31.8

4.61

10 3/4

51

10.75

0.45

9.85

9.694

49.55

22.6



29.4

2.21

10 3/4

55.5

10.75

0.495

9.76

9.625

54.26

20.8



27

-0.19

10 3/4

55.5

10.75

0.495

9.76

9.604

54.26

20.8



27

-0.19

10 3/4

60.7

10.75

0.545

9.66

9.504

59.45

18.8



24.4



10 3/4

65.7

10.75

0.595

9.56

9.404

64.59

16.8



22



10 3/4

73.2

10.75

0.672

9.406

9.25

72.4









10 3/4

79.2

10.75

0.734

9.282

9.126

78.59









10 3/4

85.3

10.75

0.797

9.156

9

84.8









11 3/4

42

11.75

0.333

11.084

11

40.64

29.6







11 3/4

42

11.75

0.333

11.084

10.928

40.64

29.6







11 3/4

47

11.75

0.375

11

10.844

45.6

27.6



35.8



11 3/4

54

11.75

0.435

10.88

10.724

52.62

25



32.4



11 3/4

60

11.75

0.489

10.772

10.625

58.87

22.6



29.6



11 3/4

60

11.75

0.489

10.772

10.616

58.87

22.6



29.6



11 3/4

65

11.75

0.534

10.682

10.625

64.03









11 3/4

65

11.75

0.534

10.682

10.625

64.03









11 3/4

71

11.75

0.582

10.586

10.43

69.48









13 3/8

48

13.375

0.33

12.715

12.559

46.02

33.2







13 3/8

54.5

13.375

0.38

12.615

12.459

52.79

30.8



40.2



13 3/8

61

13.375

0.43

12.515

12.359

59.5

28.4



36.8



13 3/8

68

13.375

0.48

12.415

12.259

66.17

25.8



33.6



13 3/8

72

13.375

0.514

12.347

12.25

70.67

24.2



31.6



13 3/8

72

13.375

0.514

12.347

12.191

70.67

24.2



31.6



16

65

16

0.375

15.25

15.062

62.64

42.6







16

75

16

0.438

15.124

14.936

72.86

38.2



45.6



16

84

16

0.495

15.01

14.822

82.05

34.2



39.6



16

109

16

0.656

14.688

14.5

107.6









18 5/8

87.5

18.625

0.435

17.755

17.567

84.59

73.6



86.4



20

94

20

0.438

19.124

18.936

91.59

47

61.2

54.8



20

106.5

20

0.5

19

18.812

104.23

41.6

54.8

48.4



20

133

20

0.635

18.73

18.542

131.45

30

40.6

35.2


2. How to Read a Steel Casing Pipe Size Chart


When selecting steel casing pipe, engineers typically evaluate several key dimensions. Understanding these parameters helps ensure the casing can meet installation, load, and operational requirements.


2.1 Outside Diameter (OD)

Outside diameter refers to the overall external diameter of the casing pipe. Casing sizes such as 4-1/2", 7", and 9-5/8" are identified by their OD.


2.2 Nominal Weight (lb/ft)

Nominal weight indicates the theoretical pipe weight per foot. A higher weight generally corresponds to a thicker wall and greater collapse resistance.


2.3 Wall Thickness

Wall thickness is the distance between the outside and inside surfaces of the pipe. Different wall thicknesses may be available for the same casing size.


2.4 Inside Diameter (ID)

Inside diameter represents the available internal flow area of the casing. It decreases as wall thickness increases.


2.5 Drift Diameter

Drift diameter is the minimum internal diameter through which a standard drift mandrel can pass. It is commonly used to verify casing clearance before running downhole equipment.


3. Steel Casing Pipe Dimensions by Application


3.1 Water Well Casing

For water well projects, casing sizes between 4" and 12" are commonly used. Residential wells often use 4" to 6" casing, while larger municipal and irrigation wells may require 8" to 12" diameters to accommodate higher pumping capacities.


3.2 Oil and Gas Well Casing

Oil and gas wells normally use several casing strings of progressively smaller diameters from the surface to the production zone.

Common examples include 13-3/8" surface casing, 9-5/8" intermediate casing, and 4-1/2" or 5-1/2" production casing.


3.3 Borehole Casing

Borehole casing is commonly used in groundwater investigation, monitoring wells, environmental sampling, and geotechnical drilling projects.Depending on the borehole design, casing sizes typically range from 4" to 10", with larger diameters often selected when additional instrumentation or higher water flow capacity is required.


3.4 Conductor Casing

Conductor casing is the first casing string installed during drilling operations. Large diameters such as 16", 18-5/8", and 20" are commonly used to support shallow formations, prevent surface collapse, and provide a stable foundation for subsequent casing strings.


4. Common Steel Casing Pipe Sizes


Although API casing is available in a wide range of diameters, several sizes are used more frequently in drilling and well construction projects. The table below summarizes common casing sizes and their typical applications.


Casing Size Common Application

4-1/2" Production casing

5-1/2" Oil & gas wells

7" Intermediate casing

9-5/8" Surface casing

13-3/8" Surface casing

20" Conductor casing


In most drilling projects, multiple casing sizes are installed sequentially to provide structural support, isolate formations, and maintain wellbore integrity throughout drilling and production operations.


5. FAQs


Q1. How is casing pipe size measured?

Casing size is generally identified by its outside diameter (OD). Additional dimensions such as wall thickness, inside diameter (ID), and drift diameter are used to define the complete casing specification.


Q2. What is the difference between casing size and inside diameter?

Casing size refers to the nominal outside diameter of the pipe, while inside diameter represents the usable internal opening. For the same casing size, the ID changes as wall thickness increases or decreases.


Q3. Why does the inside diameter change while the outside diameter remains the same?

API casing is classified by outside diameter. Different weight options are available for the same OD, resulting in different wall thicknesses and therefore different inside diameters.


Q4. What is drift diameter in steel casing pipe?

Drift diameter is the minimum internal diameter through which a standard drift mandrel can pass. It is used to verify that downhole tools and equipment can move through the casing without obstruction.


Q5. Can the same casing size have different weights?

Yes. A single casing size may be produced with multiple wall thicknesses and nominal weights. For example, 7" casing is available in several weight grades, each providing different strength and internal dimensions.


Q6. What casing sizes are commonly used for water wells?

Water well casing typically ranges from 4 inches to 12 inches in diameter. The selected size depends on well depth, pump capacity, and required water production.


Q7. What are the standard steel casing pipe sizes?

Standard API casing sizes range from 4-1/2" to 20" OD. Common sizes include 4-1/2", 5-1/2", 7", 9-5/8", 13-3/8", and 20", depending on the well design and application requirements.


Related Steel Casing Pipe Resources

For additional sizing and specification information, refer to the following resources:


Steel Casing Pipe Weight Chart

Steel Casing Pipe Wall Thickness

Steel Casing Pipe Length

Applications of Steel Casing Pipe

How To Choose The Size of Steel Casing Pipe?
