Differences Between Pup Joint and Riser Pup Joint

Pup joints and riser pup joints play important but distinct roles in oil and gas drilling and production operations. Although both are shorter pipe sections, they differ significantly in their functional positioning, design features, and application scenarios. Understanding the differences between these two types of pipe fittings is crucial for equipment selection, cost control, and project safety.

Functional Differences

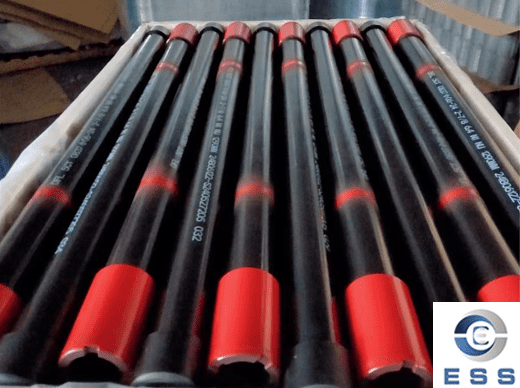

1. Function of the Pup Joint

It is primarily used to adjust the overall length of the tubing or casing string within the wellbore to meet well depth requirements.

It is commonly found in production tubing assemblies for length compensation or structural adjustments.

In some cases, it is also used to separate downhole tool locations or facilitate testing.

2. Function of the Riser Pup Joint

Designed specifically for offshore drilling riser systems, it is primarily used to adjust the overall riser length to ensure it matches the water depth, platform height, and wellbore trajectory. This is particularly critical in deepwater and ultra-deepwater drilling, ensuring riser tension and platform stability.

Differences in Length Range

1. Pup Joint Length

Standard lengths typically range from 2 to 25 feet, depending on the application and manufacturer.

2. Riser Pup Joint Length

These are typically longer than standard pup joints, starting at 10 feet and sometimes reaching 20 feet or more. These larger sizes allow for finer adjustments to riser lengths.

Differences in Material Selection

1. Pup Joint Material

Mostly uses API standard tubing or casing pipe, such as API 5CT J55, N80, L80 steel grades.

2. Riser Pup Joint Material

Due to the harsher marine environment, higher-grade materials are often used, such as:

High-strength low-alloy steel

Sulfide stress cracking (SSC)-resistant steel

Corrosion-resistant alloys (CRA), such as 13Cr and Inconel alloys

These materials can withstand high pressures, high corrosion, and cyclic loads.

Differences in Forms

1. Types of Pup Joints

Depending on the operating conditions, they can be categorized as integral pup joints, threaded pup joints, and thickened pup joints.

2. Types of Riser Pup Joints

They may be equipped with additional reinforcement layers, buoyancy module connections, or even an anti-corrosion internal coating.

Different Connection Methods

1. Pup Joint Connections

They typically use API threaded connections (such as EUE, NU, and BTC) consistent with tubing or casing pipe, facilitating direct connection to the tubing string.

2. Riser Pup Joint Connections

Special pipe flange connections and hammer unions are often used to improve strength and sealing performance, adapting to the high-stress environment of the riser.

Cost Comparison

1. Pup Joint Costs

Due to their relatively simple design and standardized materials, they are relatively low-cost and are common consumables in wellbores.

2. Riser Pup Joint Costs

Due to their larger size, higher-end materials, and more complex connections, they cost significantly more than standard pup joints.

Typical Application Scenarios

1. Pup Joints Application

Used throughout the drilling and completion process, from handling tubing and casing pipe to fine-tuning wellbore configurations. Suitable for use both inside and outside the wellbore.

2. Riser Pup Joints Application

Specially used in riser systems to compensate for water depth fluctuations and other factors during drilling, production, and production.

FAQ

1. Are Pup Joints and Riser Pup Joints Interchangeable?

No. Pup joints are primarily used in tubing/casing strings within the wellbore. Their connection methods and stress environments are completely different from those of riser systems.

Riser pup joints are required to withstand the high dynamic loads and corrosive fluids found in marine environments. Their design requirements are far higher than those of standard pup joints, making them non-interchangeable.

2. How Much More Expensive Are Riser Pup Joints Than Standard Pup Joints?

The cost of standard pup joints primarily depends on the steel grade (e.g., J55, N80, L80). They are generally standardized and relatively inexpensive.

Riser pup joints, however, are typically 2 to 5 times more expensive than standard pup joints due to their use of high-strength alloys and corrosion-resistant materials, and require specialized connection methods. This can be even more expensive in deepwater projects.

Conclusion

Pup joints are primarily used for internal wellbore operations, adjusting length and fine-tuning the structure, and are considered downhole consumables. Riser pup joints are a critical component of offshore drilling riser systems, used to compensate for varying water depths and adjust riser configurations. They are therefore high-value, critical components.
