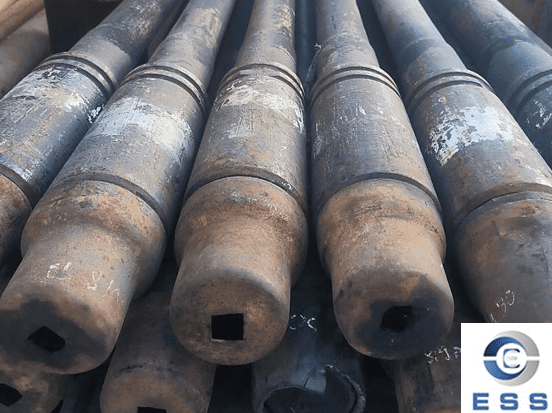

Drill pipe is an indispensable tool in the drilling process. Its primary function is to transmit torque and transport drilling fluid. Furthermore, the wellbore can be deepened by gradually lengthening the drill pipe. Therefore, the appropriate drill pipe size is crucial to drilling operations, and its length selection and calculation directly impact drilling efficiency, construction costs, and safety.
According to international standards, the length of a single drill pipe is typically 3 meters. This standard length is designed to facilitate connection and transportation of drill pipes and to meet drilling requirements in diverse geological conditions.
In practice, multiple drill pipes can be connected as needed to achieve the desired drilling depth. Common scenarios include:
Single 3-6 meter drill pipes are spliced together.
15-30 6-meter drill pipes are required.
Custom-made 12-meter drill pipes may be used.
Standard drill pipe typically comes in two lengths: 3 meters and 6 meters. The length of each drill pipe is selected based on actual needs. The following formula can be used for calculation:
L = H - L1 - L2
Where H refers to the wellbore depth, i.e., the distance from the surface to the bottom of the well. The drill bit length (L1) and the tool joint length (L2) can be measured and calculated based on actual conditions.
Non-standard drill pipe generally refers to lengths other than 3 meters and 6 meters, such as 4.5 meters, 7.5 meters, and 9 meters. The calculation method is similar to that for standard drill pipe; simply adjust the drill pipe length. The specific method is as follows:
L = H - L1 - L2 - E
Where E refers to the error value for the non-standard drill pipe length, which can be adjusted based on actual conditions.
Method |
Accuracy Range |
Cost |
适用Applicable Scenarios
|
Direct measurement |
±1mm/m |
Low |
Temporary maintenance, small projects |
Laser ranging |
±0.1mm/m |
Medium-High |
Accuracy requirements, harsh environments |
Automated technology |
±0.05mm/m |
High |
Large-Scale drilling operations |
Notes:
Clean the drill pipe surface before measurement to prevent contamination from affecting the results.
Calibrate equipment regularly, such as laser rangefinders, at least annually (ISO 9001 requirement).
For shallow hole drilling operations, short or medium-length drill pipes can be selected.
These drill pipes are lightweight, easy to carry, and easy to install, making them suitable for shallow formations or small drilling projects.
Deep hole drilling operations require longer drill pipes to reach the desired depth. In these cases, long drill pipes should be selected to ensure stability and continuity during drilling. At the same time, attention must be paid to the strength and wear resistance of the drill pipe to adapt to the complex environment of deep formations.
When drilling in complex geological conditions, such as interlaced rock formations and developed fractures, drill pipe with good adaptability is required.
This drill pipe should possess high strength and toughness to cope with the challenges posed by formation variations.
A1: 6 meters is convenient for transportation and manual operation, while ensuring sufficient well depth extension efficiency, making it the mainstream choice for various drilling projects.
A2: Longer drill pipe reduces the number of joints, thereby reducing torque loss and joint wear, improving overall drilling efficiency and safety.
Calculating drill pipe length is not simply a matter of mathematical formulas; it involves multiple factors, including well depth, drilling rig capabilities, joint standards, transportation conditions, and geological conditions. Correctly selecting and calculating drill pipe length can improve drilling efficiency.
