Features And Functions of Flanged Pup Joints

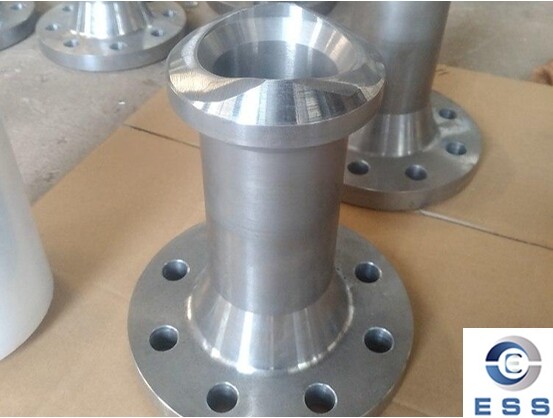

Flanged pup joints are flange connectors that connect pipes and equipment. It usually consists of two flanges and a short connection kit, which is usually a round or square pup joint made of stainless steel or carbon steel.

Flanged pup joints are connected by welding flanges at the ends of the pup joints. They are often used for socket welding or butt welding. The sealing surface forms include raised face (RF) and flat face (FF).

Characteristics of flanged pup joints

1. Compact structure

The length of flanged pup joints is relatively short, which can effectively reduce the volume and weight of the pipeline system and improve the compactness of the pipeline.

2. Good sealing performance

The connection between the pup joints and the flange plate usually uses sealing gaskets or metal gaskets to ensure the sealing of the pipeline system.

3. Strong pressure resistance

The materials used to make flanged pup joints are usually high-strength materials such as carbon steel, alloy steel or stainless steel, which have strong pressure resistance and corrosion resistance.

4. Easy installation and maintenance

The installation and maintenance of flanged pup joints are very convenient. The flange can be removed to inspect or replace the pipe.

Function

1. Connecting pipes

Flanged pup joints are usually used to connect different parts of the same pipe or equipment. It can achieve quick disassembly and assembly, which is convenient for the maintenance and cleaning of pipes.

2. Connecting equipment

Flanged pup joints can also be used to connect equipment such as pumps, valves, radiators, etc. This makes it easy to maintain and replace equipment, saving maintenance time and cost.

3. Relieve pipe stretching and vibration

Since the pipe will be affected by internal and external factors during use, the flanged pup joints can also relieve pipe stretching and vibration and avoid pipe rupture.

Precautions

1. When making flanged pup joints, it is necessary to strictly abide by relevant standards and specifications to ensure the safety and stability of the pipe system.

2. When welding, it is necessary to pay attention to the welding process and welding quality to ensure the firmness and sealing of the welding points.

3. During use, the pipeline system needs to be regularly inspected and maintained to prevent pipeline leakage and safety accidents.

Conclusion

Flanged pup joints are widely used in various industrial fields. During use, it is necessary to pay attention to the safety and stability of the pipeline system, and conduct regular inspections and maintenance to ensure the normal operation of the pipeline system.
