Boiler Tube: The Difference Between Seamless and Welded

Boiler tubes are steel products with open ends and a hollow cross-section, with a large length-to-circumference ratio. They serve as critical high-temperature, high-pressure transmission components in industries such as power, petrochemicals, and metallurgy. Their quality and performance directly impact the safety and service life of the equipment.

Boiler tubes can be categorized as seamless or welded based on their production method. These two types differ significantly in manufacturing process, performance, cost, and application scenarios.

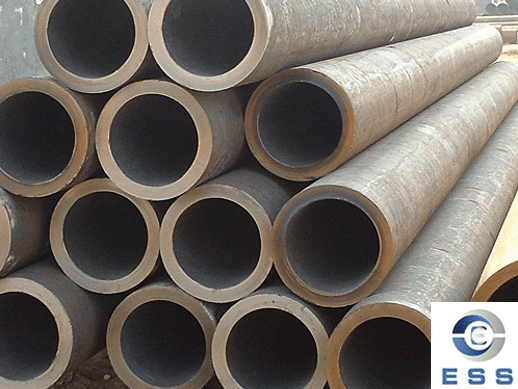

What is A Seamless Boiler Tube?

Seamless boiler tubes are produced through hot rolling, cold drawing (rolling), or hot extrusion. They have no welds and are a single-piece structure.

1. Key Features

Strong structural integrity, uniform mechanical properties, and no weld weaknesses.

2. Common Standards

Chinese Standard: GB 5310 "Seamless Steel Pipe for High-Pressure Boilers"

US Standards: ASTM A192, ASTM A210, ASTM A335

European Standard: EN 10216-2

What is A Welded Boiler Tube?

Welded boiler tubes are made by welding steel plates or strips after being rolled into shape. Common welding methods include electric resistance welding (ERW) and submerged arc welding (SAW). Modern welding technologies, such as automated laser welding and X-ray inspection, have significantly improved their reliability.

1. Key features of welded boiler tubes

High manufacturing efficiency, low cost, and ease of mass production.

2. Common standards for welded boiler tubes

Chinese Standard: GB/T 16507 "Water-Tube Boilers"

US Standards: ASTM A178, ASTM A214

European Standard: EN 10217-2

Key Differences Between Welded and Seamless Boiler Tubes

1. Manufacturing process comparison

Seamless Boiler Tubes

These tubes require no welding and are manufactured through hot rolling or cold drawing. They have no weld seams and provide excellent overall continuity. However, this results in higher production costs and longer delivery times.

Welded Boiler Tubes

Made from cold-rolled or hot-rolled steel plates, the manufacturing process involves forming the material into a tubular shape and welding the seams. This method is faster and more economical.

2. Performance comparison

Seamless Boiler Tubes

Seamless boiler tubes have no weld defects, offer higher tensile strength and pressure resistance, can withstand higher temperatures and pressures, and offer superior stability under high-temperature and high-pressure conditions.

Welded Boiler Tubes

Welded boiler tubes are affected by the weld seam, resulting in slightly lower mechanical properties than the tube itself. However, under normal operating conditions, they still meet basic service requirements.

3. Cost-effectiveness comparison

Seamless boiler tubes

Due to the complex processing and high quality material of boiler tube, they are more expensive.

Welded boiler tubes

Typically offer 20-30% greater cost-effectiveness than seamless tubes. Lower material loss, higher production efficiency, and greater availability make welded boiler tubes an economical choice.

4. Dimensional consistency comparison

Seamless boiler tubes

Due to the piercing process, thickness and diameter may vary significantly.

Welded boiler tubes

Offer superior dimensional accuracy and surface finish, which are critical for applications requiring precise tolerances.

5. Inspection and testing comparison

Seamless boiler tubes

Seamless tubes are subject to uniformity and pressure resistance testing.

Welded boiler tubes

Welded tubes require ultrasonic or X-ray inspection of welds.

6. Applications comparison

Seamless boiler tubes

Although more expensive, they are typically used in ultra-high-pressure steam applications, environments involving rapid thermal cycling, and systems requiring zero tolerance for structural defects.

Welded boiler tubes

Due to their competitive price and reliable performance, they are widely used in power plants, refineries, chemical plants, and HVAC systems.

Seamless vs. Welded Boiler Tubes: How to Choose?

1. Operating conditions

If the operating temperature is >500°C and the pressure is >15 MPa, seamless boiler tubes are recommended.

2. Budget factors

If the company has a limited budget and relatively relaxed operating environment requirements, cost-effective welded boiler tubes are more suitable.

3. Specific applications

Critical equipment (such as power plant main steam lines and chemical reactors) should use seamless tubes; general heat exchange equipment can use welded tubes.

FAQ

Q1: What is the lifespan of seamless boiler tubes and welded boiler tubes?

A1: Under normal operating conditions, the lifespan difference between the two is not significant; however, under high temperature and high pressure, seamless boiler tubes have a longer lifespan.

Q2: Does the weld seam of welded boiler tubes pose a safety hazard?

A2: As long as it complies with ASTM/GB/EN standards and undergoes rigorous X-ray/ultrasonic testing, the weld seam can achieve performance close to that of the parent material, ensuring safety.

Q3: Can welded boiler tubes replace seamless boiler tubes?

A: They can completely replace some medium- and low-pressure operating conditions, but seamless boiler tubes are still required in high-risk environments such as nuclear power plants and petrochemical cracking furnaces.

Summary

Seamless and welded boiler tubes each have their advantages: seamless tubes focus on safety and reliability under extreme operating conditions, while welded tubes excel at cost-effectiveness and dimensional accuracy. When choosing between these two tubes, consider the operating pressure, temperature, budget, and lifespan requirements.
