Pipe welding is an important process in many industries, including oil and gas, construction, and manufacturing. Welding pipes is a complex and challenging task that requires a high degree of skill and precision. One critical step in the pipe welding process is pipe beveling, which is the process of cutting a beveled edge on the pipe end to prepare it for welding. Pipe beveling is important for welding because it allows for a better weld joint and improves the strength and integrity of the pipe.

Pipe Beveling

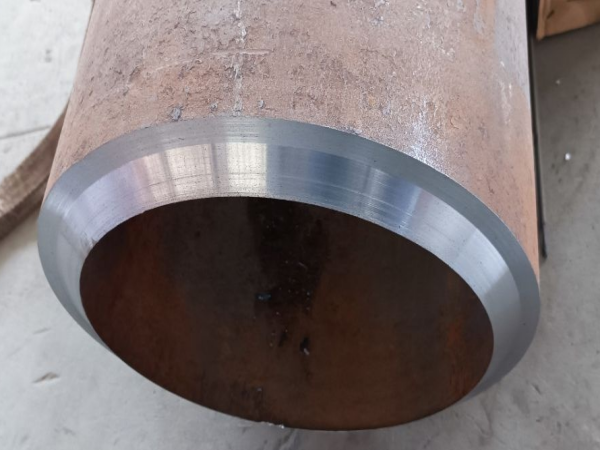

Pipe beveling is an angle forming between the edge of the end of pipes or tubes. When the pipe end is formed with a certain degree of an angle, it is called a bevel end or beveled end. Pipe beveling is an essential step in the welding preparation process of pipe joining. The quality of the beveled pipe directly affects the quality of the welding, so proper pipe preparation ensures the best possible weld joint. Other than welding, beveling can also be used for deburring the cut pipe ends for aesthetic and safety reasons.



Chamfering vs. Beveling

Pipe chamfering is technically a type of pipe beveling. Both chamfering and beveling refer to the edge formed between two surfaces of a pipe or tubing.



However, the main difference is that chamfering involves two surfaces meeting at a 45-degree angle, while beveling can be done at any angle other than 45 or 90 degrees.



Types of Bevels

There are several types of bevels used in pipe welding, each with its own advantages and disadvantages. The most common types of bevels are:



1. V-Bevel

The V-bevel is one of the most common types of bevels used in pipe welding. It is created by cutting a V-shaped groove into the end of the pipe.



The angle of the V-groove can vary, depending on the welding process used and the thickness of the pipe.



The V-bevel is preferred for thicker pipes because it provides a larger surface area for the weld, which makes it stronger and more durable.



2. J-Bevel

The J-bevel is similar to the V-bevel, but instead of a V-shaped groove, it has a J-shaped groove.



The J-bevel is often used when welding pipes with a small diameter because it provides a smaller surface area for the weld.



This reduces the amount of welding material needed and makes the welding process faster and more efficient.



3. U-Bevel

The U-bevel is a bevel that has a U-shaped groove. It is often used when welding pipes that have a large diameter and a thick wall because it provides a larger surface area for the weld.



The U-bevel is also useful for pipes that will be subjected to high pressure or stress because it creates a smooth transition between the two pipes, which reduces stress on the weld joint.

Equipment Used for Beveling

There are several types of equipment used for pipe beveling, each designed for specific types of bevels and pipe sizes. Some of the most common equipment used for pipe beveling includes:

1. Handheld Bevelers

Handheld bevelers are portable tools that are designed to be used on site or in the field. They are powered by electricity, compressed air, or gas, and they can be used to create a variety of bevels, including V-bevels, J-bevels, and U-bevels. Handheld bevelers are lightweight and easy to use, making them ideal for small jobs or for beveling pipes in hard-to-reach areas.

2. Stationary Beveling Machines

Stationary beveling machines are designed to be used in a workshop or factory setting. They are typically larger and more powerful than handheld bevelers, and they can be used to create a wider range of bevels on larger pipes. Stationary beveling machines can be automated or manually operated, depending on the type of machine and the size of the pipe being beveled.

3. Pipe Cutting and Beveling Machines

Pipe cutting and beveling machines are designed to perform both cutting and beveling operations on pipes. These machines are typically used on large pipes or in high-volume production environments. They are often automated and can be programmed to create precise bevels on pipes of different sizes and shapes.

4. Plasma Beveling Machines

Plasma beveling machines use plasma cutting technology to create bevels on pipes. These machines are capable of creating precise, clean cuts and bevels on a wide range of pipe sizes and materials. Plasma beveling machines are often used in high-precision welding applications or when working with exotic metals.

Drawbacks of the Beveling Methods

Hand Grinding	Torch or Plasma Cutter	Portable Beveling Machine	Stationary Beveling Machine
Potential safety hazard	Fire hazard	Potential electrical cord hazard	Not suitable for on-site machining
Fire hazard	Requires touchups	Possible guarding issues	Relatively high investment cost
Creates a lot of mess	Creates a lot of mess	Needs a chip container
Time-consuming	Cannot operate on all materials	Expensive custom ground tooling
Inconsistent bevel quality	Requires Oxygen or dry compressed air	Time-consuming
Expensive grinding wheels	Cannot process J-bevels or special shapes
Cannot process J-bevels or special shapes

Why Pipe Beveling is Important for Welding

1. Improved Weld Quality

The primary purpose of pipe beveling is to achieve high-quality welds. This means creating a groove or space at the joint of two pipes, allowing molten metal to flow between the ends, resulting in a stronger connection.

2. Improved Weld Quality

Without beveling, the weld cannot fully penetrate, leading to insufficient joint strength. This can cause leaks, stress cracking, and in more serious cases, even system failure. Clean, precise beveling creates ideal welding conditions for the welder, resulting in a strong, high-strength connection.

3. Facilitates Traditional Assembly

In traditional pipe welding, beveling tools are typically used to ensure pipe alignment and a smooth, precise connection. When one beveled pipe end meets another, the two surfaces fit together perfectly. This alignment helps speed up the welding process by reducing the time spent adjusting the pipes during assembly.

Beveled pipe ends connect more easily, making welding easier. The entire assembly process becomes more efficient and uniform.

4. Improved Construction Efficiency

Using beveled pipes can significantly accelerate construction progress. Beveled pipes are easier to connect during welding, avoiding unnecessary and time-consuming hassles caused by correcting misaligned pipes.

Furthermore, it reduces the likelihood of rework and schedule delays. The more precise the bevel, the fewer subsequent problems will arise; this directly contributes to improved project efficiency.

5. Adaptable to Diverse Application Needs

Not all welding applications are the same. Some welds may require a V-groove for deeper penetration, while others require a J-groove to improve material utilization. Pipe beveling systems allow for beveling at various angles and types, ensuring your welds can be appropriately adapted to your application requirements.

Important Factors in Beveling

Pipe beveling involves many factors that you need to consider to ensure accurate and consistent beveling. Below, we will discuss some of the key issues affecting beveling:

1. Angle Accuracy

The accuracy of the bevel angle is crucial. Whether it's a 37.5-degree bevel or a more precise angle, it must be within tolerance to guarantee weld strength.

2. Bevel Length

Bevel length refers to the length of the area along which the pipe is cut at an angle. Maintaining a consistent bevel length for all pipe welds makes welding easier and helps ensure consistent joint strength.

3. Bevel Surface Finish

The bevel surface should be smooth, avoiding any burrs or edges that could affect the weld. Deburring and finishing the bevel after cutting improves the final result.

4. Machine Speed

The speed of the beveling machine affects efficiency. Completing more work in less time means a faster cutting speed, but you must ensure that speed does not affect accuracy.

Techniques Used for Achieving a Perfect Bevel

Achieving a perfect bevel requires a combination of skill, experience, and the right equipment. Some of the techniques used for achieving a perfect bevel include:

1.Selecting the Right Bevel Angle

Selecting the right bevel angle is crucial for achieving a perfect bevel. The angle of the bevel determines the amount of welding material needed and the type of welding technique used. The bevel angle should be chosen based on the thickness of the pipe, the welding process being used, and the type of material being welded.

2.Using the Right Beveling Tool

Using the right beveling tool is also important for achieving a perfect bevel. Different types of beveling tools are designed for specific types of bevels and pipe sizes. Using the wrong tool can result in a poor-quality bevel or damage to the pipe.

3.Maintaining the Beveling Tool

Maintaining the beveling tool is crucial for achieving a perfect bevel. Beveling tools should be kept clean and well-maintained to ensure that they are operating at peak efficiency. Dull or damaged beveling tools can result in poor-quality bevels and can cause damage to the pipe.

4.Using Proper Technique

Using proper technique is important for achieving a perfect bevel. Beveling should be done slowly and carefully to ensure that the bevel is smooth and even. The bevel should be inspected regularly to ensure that it is the correct size and angle.

FAQ

1. What is a beveled end pipe?

A pipe bevel refers to the angle formed at the end edge of a pipe or tubing. When the end of a pipe forms a certain angle, it is called a beveled end or chamfered end.

2. What is the purpose of a bevel?

They are widely used in architectural details, furniture, automotive parts, machine parts, blades, and tools.

Conclusion

In summary, pipe beveling is a critical step in the pipe welding process that can greatly improve the quality, strength, and safety of the welded joint. It requires skill, experience, and the right tools and techniques, but the investment in proper beveling will pay off in the form of high-quality, long-lasting welds that meet or exceed industry standards. Welders who prioritize proper pipe beveling and take the time to ensure that their pipes are properly prepared for welding will set themselves apart as professionals in their field.
