ASTM A53

ASTM A53 is for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless

ASTM A53 specification covers seamless and welded black and hot-dipped galvanized steel pipe in NPS 1/8 to NPS 26. The steel categorized in this standard must be open-hearth, basic-oxygen or electric-furnace processed and must have the following chemical requirements: carbon, manganese, phosphorus, sulfur, copper, nickel, chromium, molybdenum, and vanadium. The tubing shall undergo a seamless or welding process. Tension, bend, and flattening tests shall be performed to make sure that it must adhere to the mechanical properties of the standard. The hydrostatic test shall be applied, without leakage through the weld seam or the pipe body. Nondestructive electric test shall be made to make sure that the full volume of the pipe must be in accordance with the standard. The purchaser shall have the right to perform any of the inspections and tests set forth in this specification where deemed necessary to ensure that the pipe conforms to the specified requirements.

ASTM A53 Steel Pipe Specifications:

A53 pipe comes in three types (F, E, S) and two grades (A, B).

Type F—Furnace-butt-welded, continuous welded Grade A.

Type E—Electric-resistance-welded, Grades A and B.

Type S—Seamless pipe, Grades A and B.

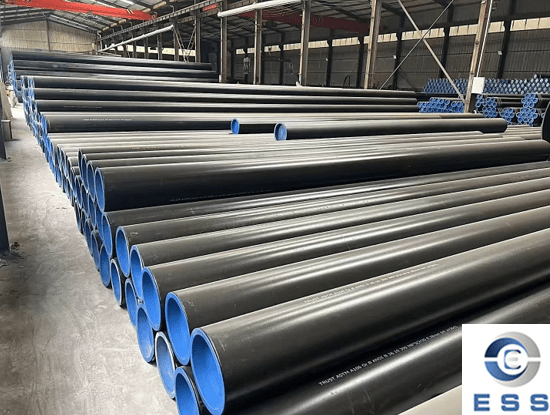

ASTM A53 schedule 40 seamless steel pipe

ASTM A53 Grade B ERW Pipe is a carbon steel pipe that comes under the ASTM A53 specification. The pipes range in dimensions according to the ASTM, ASME and API standards. The sizes of the pipes range from ½ inches to 36 inches in nominal bore sizes.

Eastern Steel Manufacturing Co.,Ltd is a leading manufacturer and supplier of the Schedule 40 SA53 GRB Seamless Pipe, welded pipe and electric resistance welded pipe types.

Schedule 40 Sa53 GRB Seamless Pipe Specification Table
